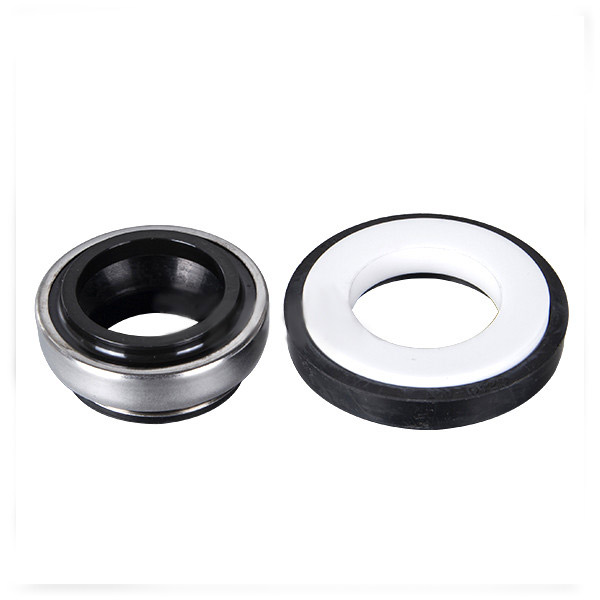

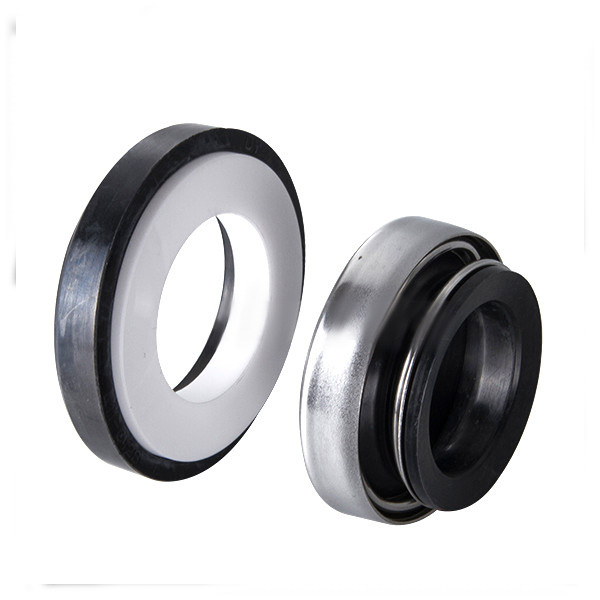

ZL301 Elastomer Bellow mechanical seal Replace Burgmann BT-AR
Description:
ZL301 mechanical seal, Replace Burgmann BT-AR
for blower pump, diving pump,circulating pump,
replace the mechanical seal of Burgmann and John Crane

Operational Conditions:
Temperature: -20℃ to +120℃
Pressure: ≤0.6MPa
Speed: ≤10m/s

Description

Materials:
Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide
Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide
Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)

Applications:
Clean water

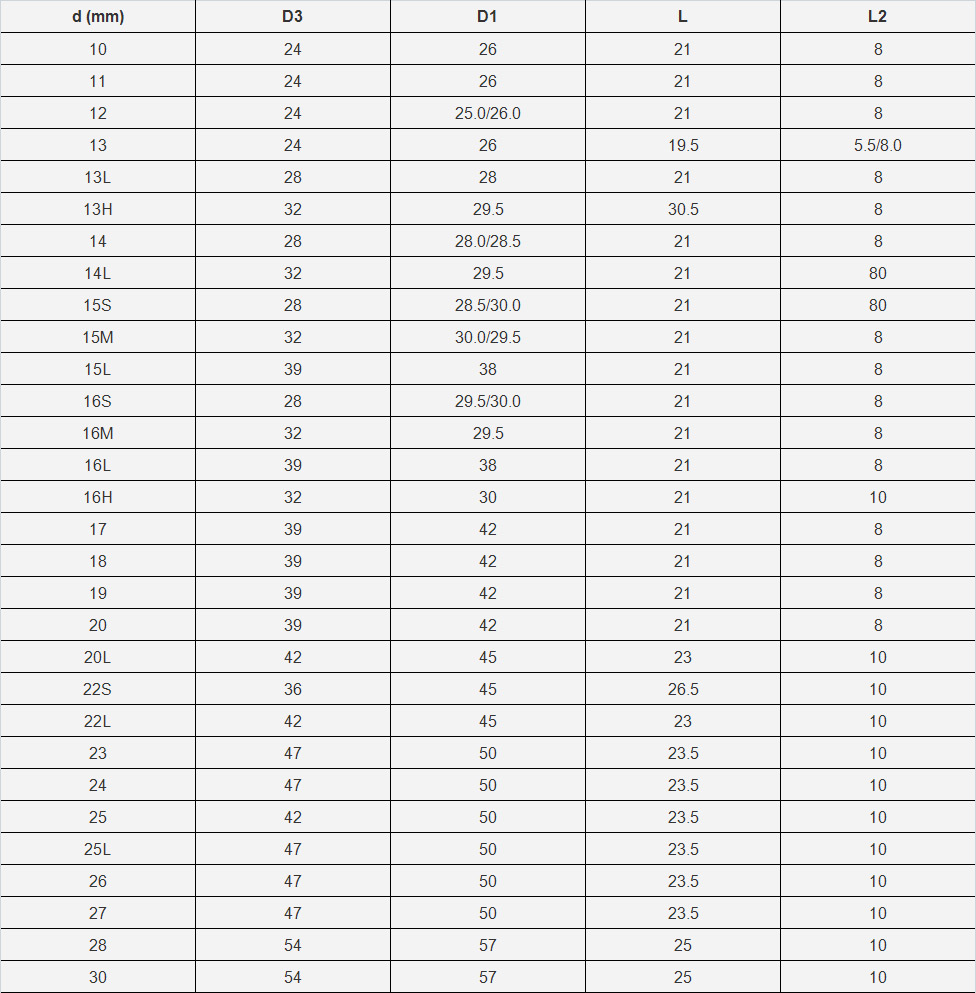

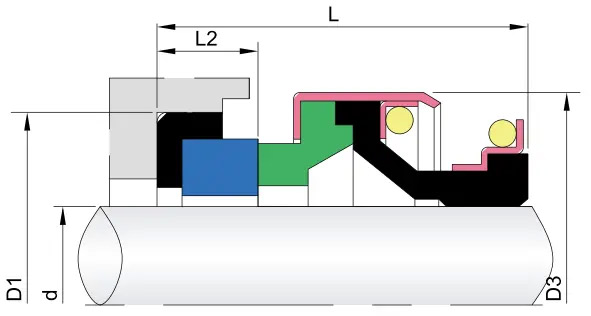

Specifications
